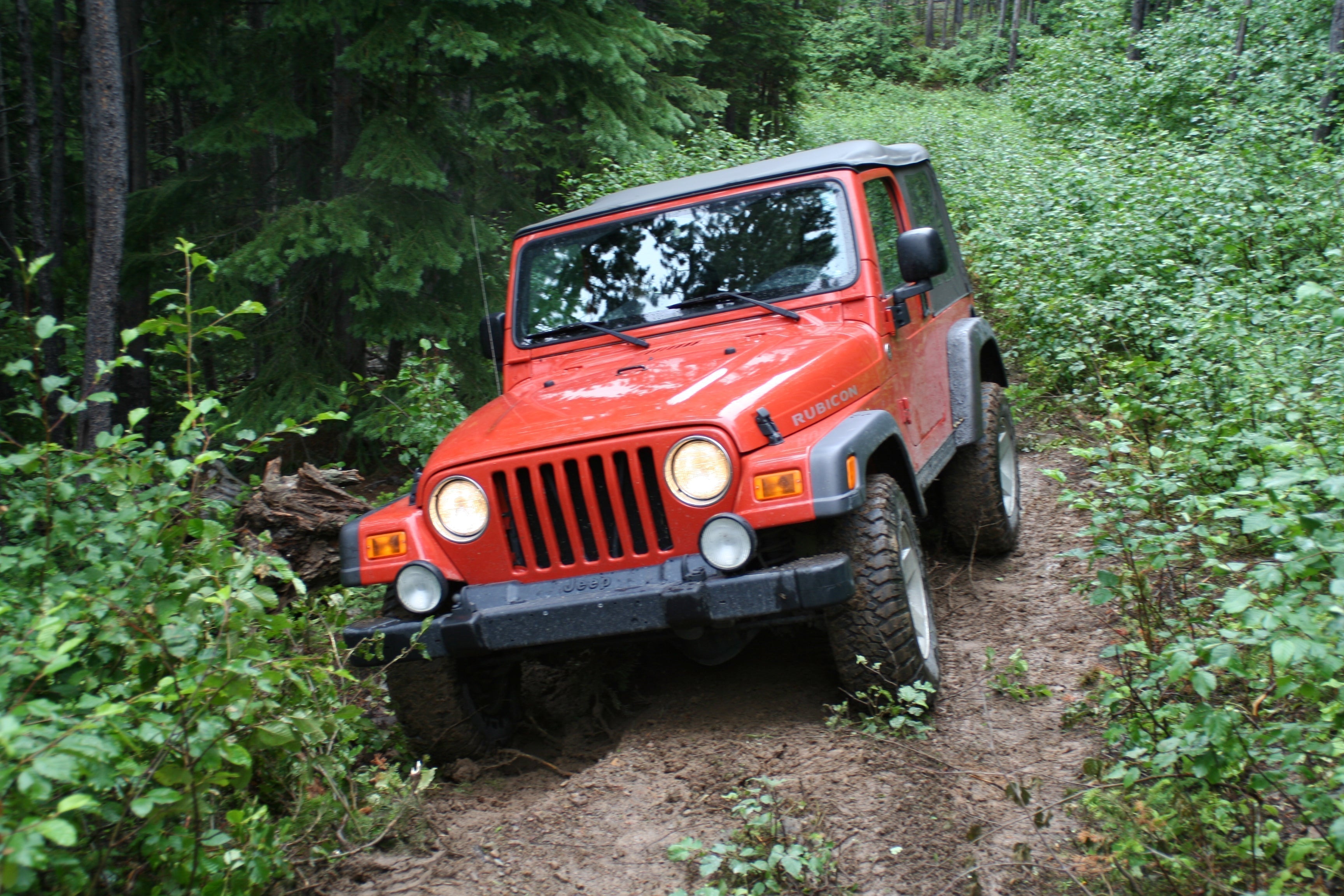

Understanding the Jeep Wrangler SKIM Module: Function, Failures, and Fixes

If you own a 2005–2006 Jeep Wrangler or are a mechanic working on one, you've likely heard the term SKIM module come up in conversations about no-start issues. This post will walk you through what the SKIM module is, what it does, how it works with the PCM, and why PCM failure is often the real culprit behind immobilizer issues.

What is the SKIM Module?

SKIM stands for Smart Key Immobilizer Module. Its job is to prevent unauthorized starting of the vehicle. It does this by ensuring that the key inserted into the ignition contains a valid transponder chip.

Each SKIM module stores a secret key that is paired with both the vehicle's PCM (Powertrain Control Module) and with one or more coded keys. If the SKIM does not detect a valid key, or if it cannot communicate properly with the PCM, the vehicle will not crank or start.

How Does the SKIM System Work?

1. You insert a coded key into the ignition.
2. The SKIM reads the transponder chip embedded in the key.
3. If the key is recognized, the SKIM sends a valid authentication signal to the PCM.
4. The PCM then allows the engine to start.

If anything in that chain breaks—invalid key, faulty SKIM, or failed communication between SKIM and PCM—the vehicle will go into a no-start condition.

The NGC3 PCM Problem

The 2005–2006 Jeep Wranglers use NGC3 PCMs, which are known to suffer from internal communication issues. One common failure mode is when the PCM stops communicating with the SKIM module, even though both the SKIM and key are working perfectly.

Symptoms:

• Key light on or flashing in the dashboard
• No crank condition
• No communication with SKIM module in diagnostics

This often leads to misdiagnosis by mechanics, who assume the SKIM module is faulty and replace it. But since the PCM is actually the problem, the issue persists—leaving the customer frustrated and out of pocket for a part they didn’t need.

What Are the Options?

Depending on the diagnosis, there are a few proven solutions:

1. PCM Testing

A suspected PCM can be bench-tested to verify:

• Communication with a diagnostic tool
• Response to SKIM handshake attempts

If the PCM fails either test, it's likely the root cause.

2. SKIM Delete (IMMO Off)

The PCM can be reprogrammed to bypass the SKIM module entirely. This removes the immobilizer requirement, allowing the vehicle to start with any key. This is useful for off-road builds, vehicles with damaged SKIM modules, or for simplifying the system by eliminating the need for coded keys altogether.

3. SKIM Pairing

If you still want to use the immobilizer system but the original SKIM module is damaged:

• You can source a new or used SKIM module along with its matching keys, and the PCM can be reprogrammed to accept the new SKIM module, provided the PCM is functional.

4. PCM Replacement

In cases where the PCM is beyond repair, a refurbished OEM PCM can be installed and programmed with your vehicle's VIN and SKIM configuration.

How We Can Help

At ecuhack.com.au, we specialize in diagnosing and solving these exact problems. We offer:

• PCM testing and diagnostics
• Permanent SKIM disable (IMMO off)
• Refurbished OEM PCMs, SKIM disabled by default but ready to pair with a new SKIM module upon installation, giving you the choice to keep or remove the immobilizer system

Whether you're dealing with a stubborn no-start issue or want to future-proof your setup, ECUHack has you covered.
